VARIANT 10 U

VARIANT 10 is undermount (U) single bowl sink in large dimensions with bowl depth of 180 mm. Sink can be placed as a single unit or as combination with other VARIANT sinks.

Sink can be installed on any type of worktop material. Sink sits perfectly kitchen island or main kitchen worktop.

VARIANT 10 is made of premium stainless steel AISI 304 which ensures high level of hygiene, resistance to temperatures (thermal shock), resistance to impacts, resistance to chemicals and 100% recyclability.

Product code	1042481-1
EAN code	3838997308468
Material	Stainless steel
Fitting	Undermounting
Length	508 mm
Width	428 mm
Depth	180 mm

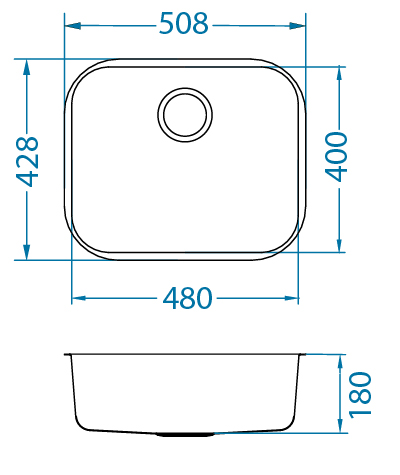

Dimensions	508X428X180
Dimensions of the bowl, main bowl	480X400X180

Technical specification

• variant-10_1042481_b2b_02.pdf
• variant-10-u_cut-out_under.pdf
• alveus_ce_document2021.pdf

Care instructions

• stala-stainless-steel-careinstructions_teraspinnan-hoito-ohje-2022.pdf.pdf
• alveus_warranty_careinstructions_stainlesssteel_2022.pdf

Installation files for worktop manufacturers

• variant-10_u_1135104_01-1.dxf
• variant-10_u.dxf
