BASIC 10

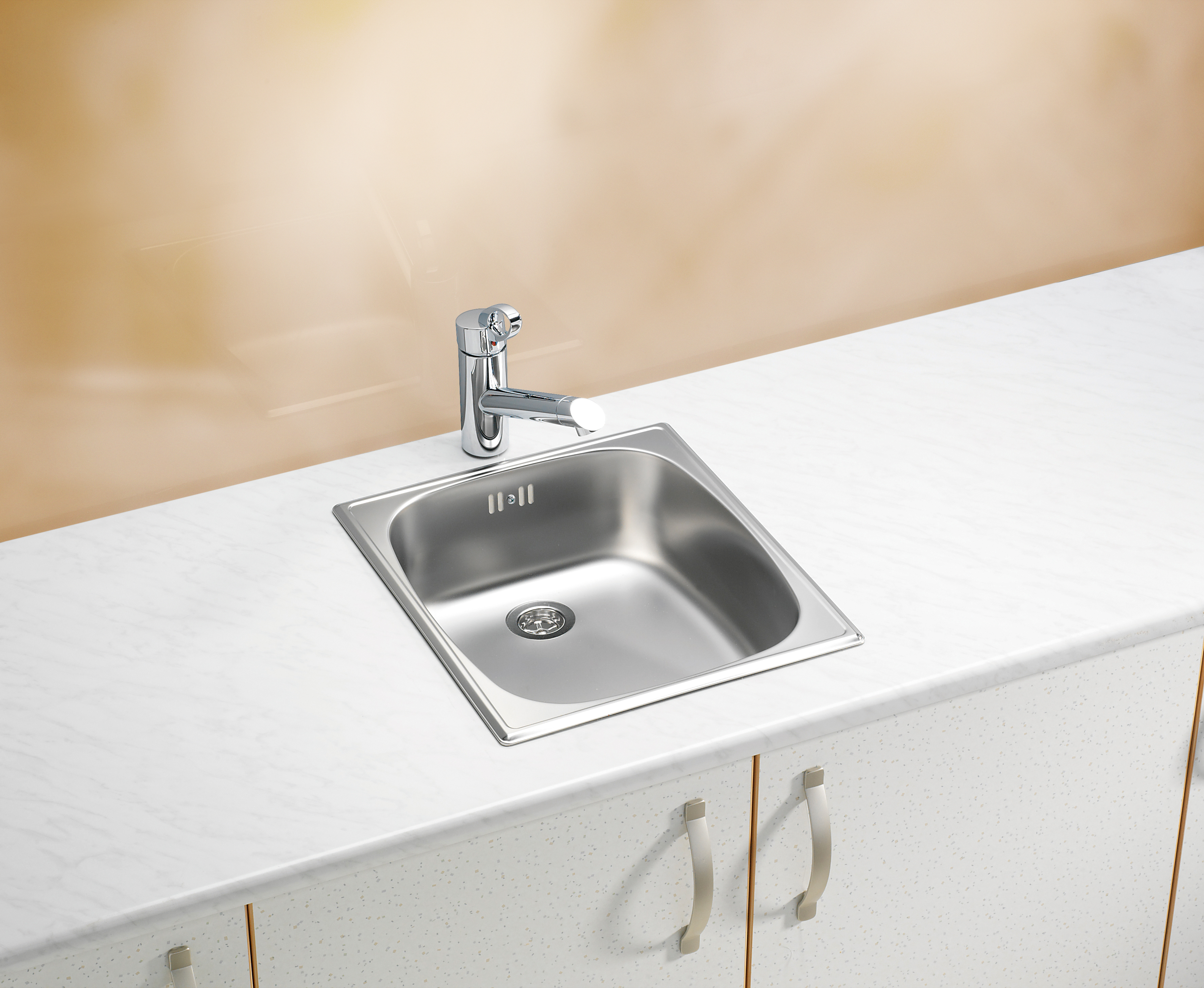

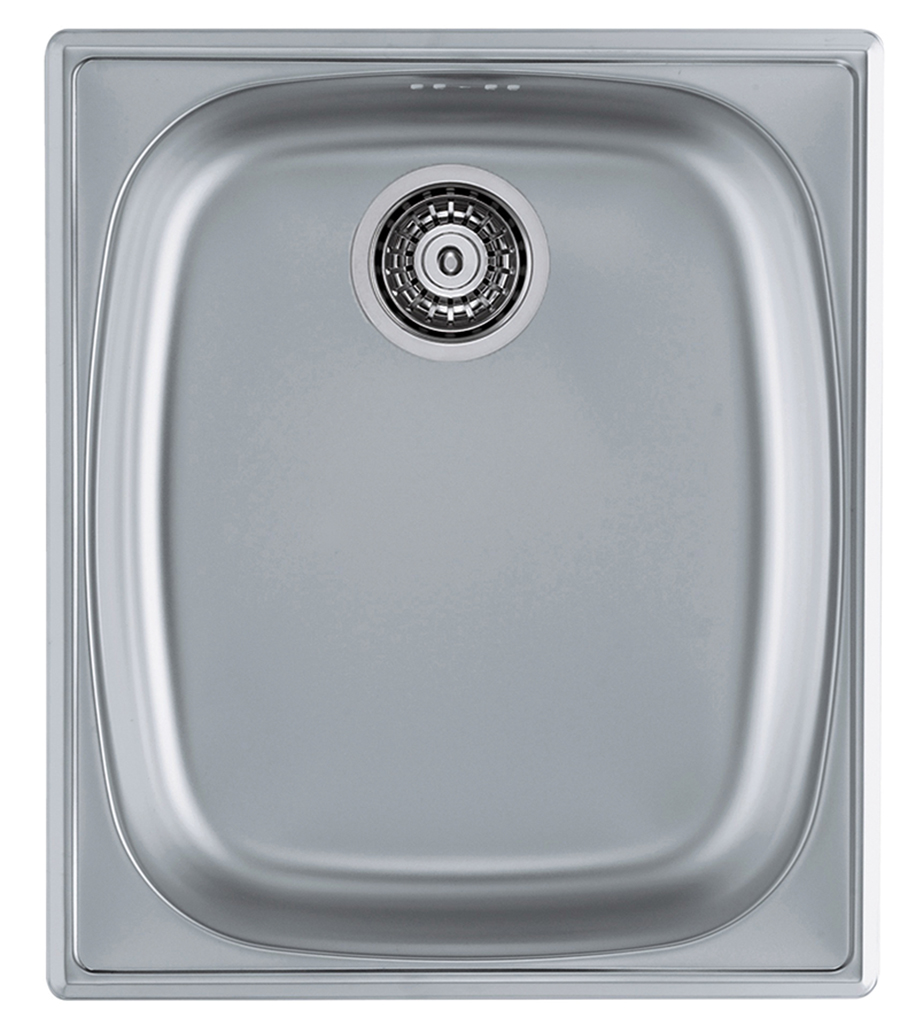

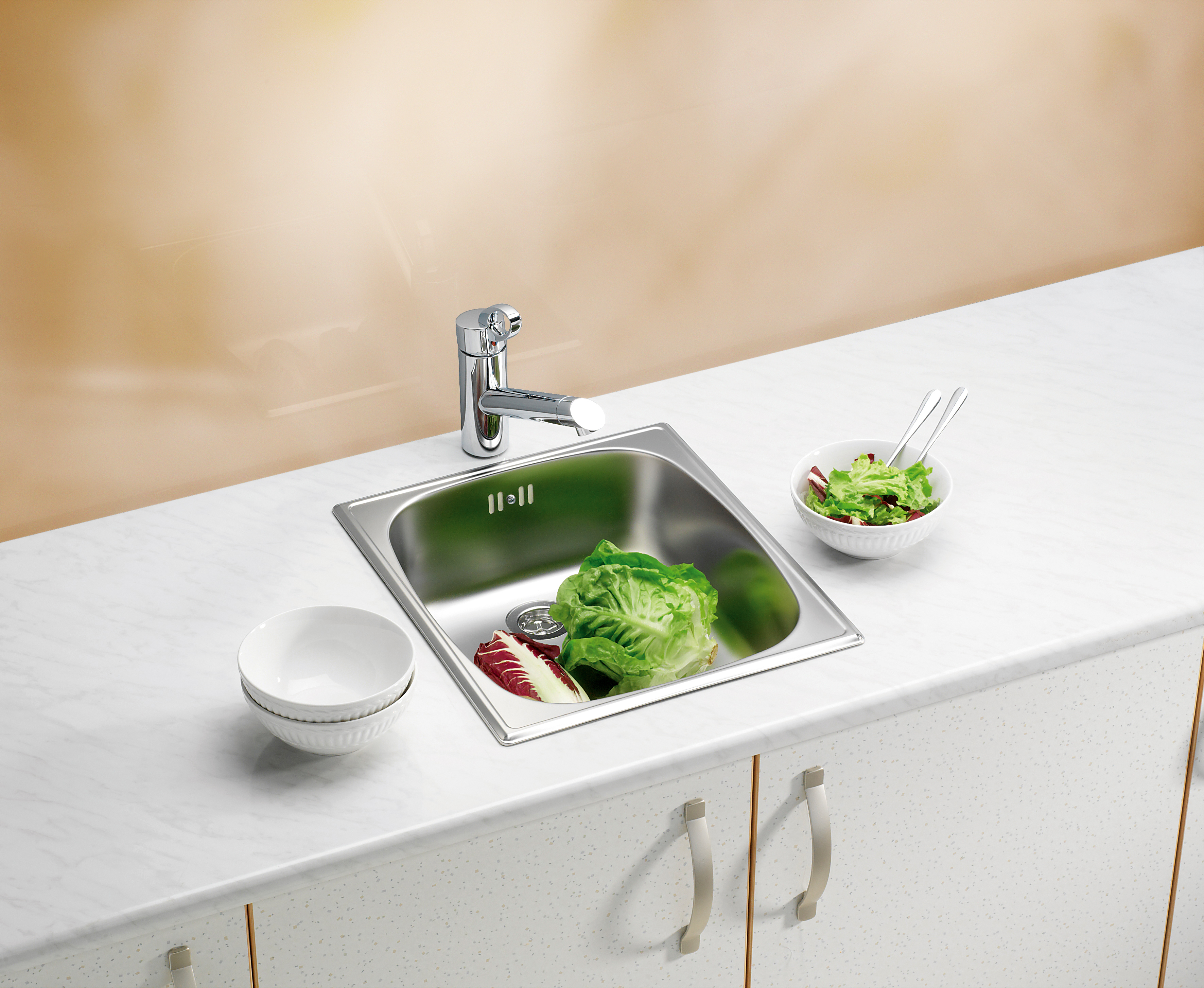

BASIC 10 is a single bowl design sink with I installation.

Sink with its size is perfectly designed for placement in small kitchens, utility rooms or cabins.

BASIC 10 is made of premium stainless steel AISI 304 which ensures high level of hygiene, resistance to temperatures (thermal shock), resistance to impacts, resistance to chemicals and 100% recyclability.

Product code	1082195-1
EAN code	3838997392931
Material	Stainless steel
Fitting	Normal insetting
Minimum cupboard width cm	40
Length	380 mm
Width	440 mm
Depth	145 mm

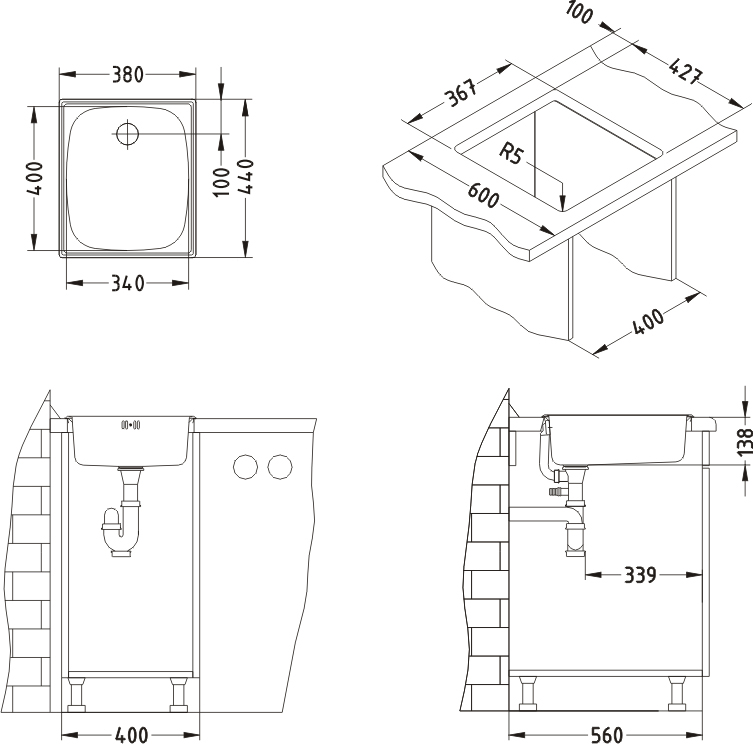

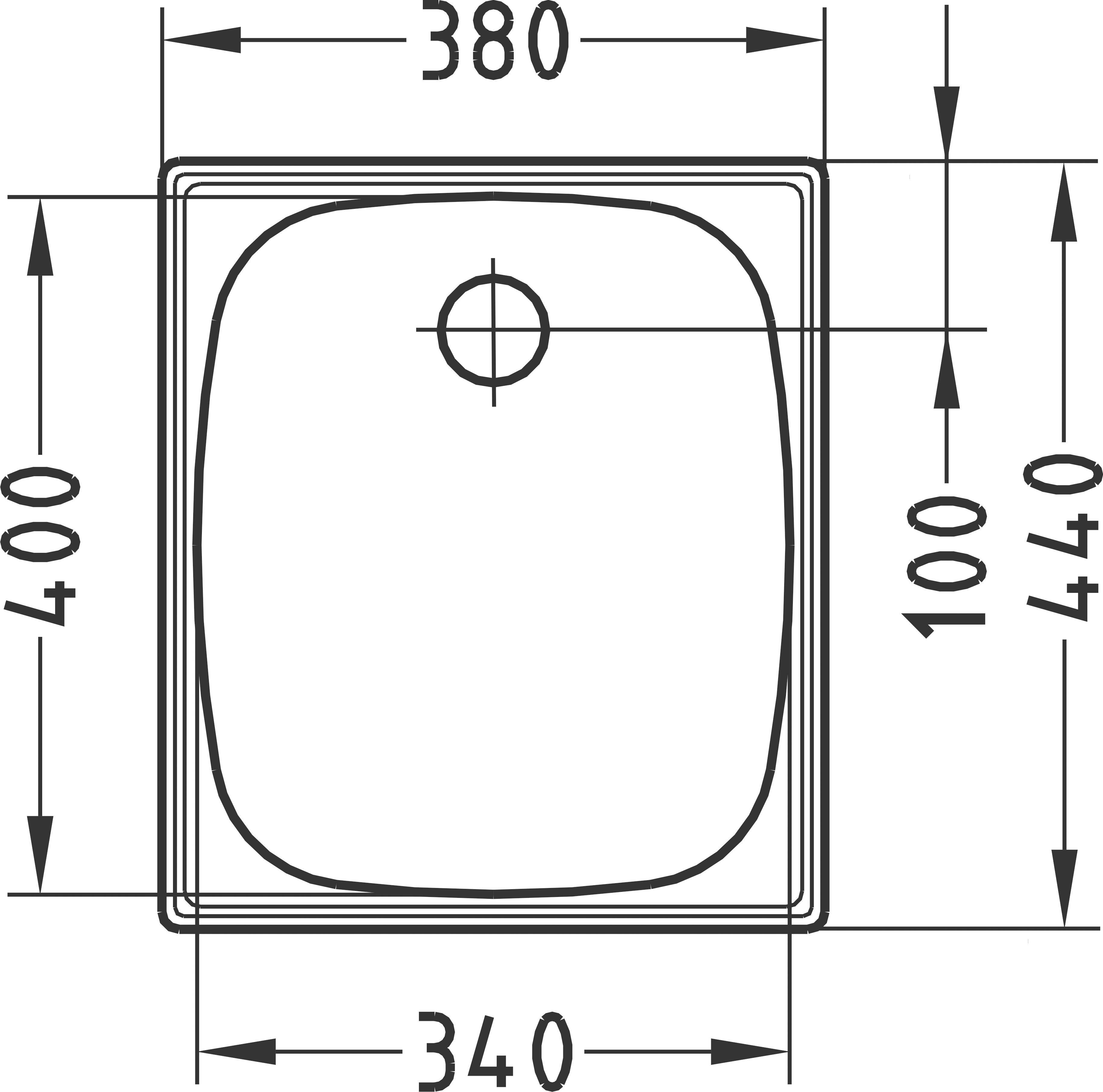

Dimensions	380x440x145
Dimensions of the bowl, main bowl	340x400x145

Technical specification

• basic-10_1082195_b2b_02.pdf
• basic-10_cut-out_top.pdf
• alveus_ce_document2021.pdf

Care instructions

• stala-stainless-steel-careinstructions_teraspinnan-hoito-ohje-2022.pdf.pdf
• alveus_warranty_careinstructions_stainlesssteel_2022.pdf

Installation files for worktop manufacturers

• basic-10_1135005_01-1.dxf
• basic-10_1082195_b2b_02.dxf
